Introduction
Understanding the PPF diagram and internal PPF structure is essential for anyone choosing paint protection film. Different layers determine durability, self-healing ability, gloss, and installation ease.
In this guide, SolarDe — a professional PPF factory in China — breaks down the science behind traditional PPF and our innovative Gloss Liquid PPF. Whether you’re a distributor, installer, or car owner, this will help you make informed decisions.
Start with choosing the right manufacturer → PPF Factory in China Learn proper application → Car PPF Installation Guide
1. What is PPF Structure? Basic PPF Diagram
A standard Paint Protection Film (PPF) is a multi-layer thermoplastic polyurethane (TPU) film designed to protect vehicle paint.

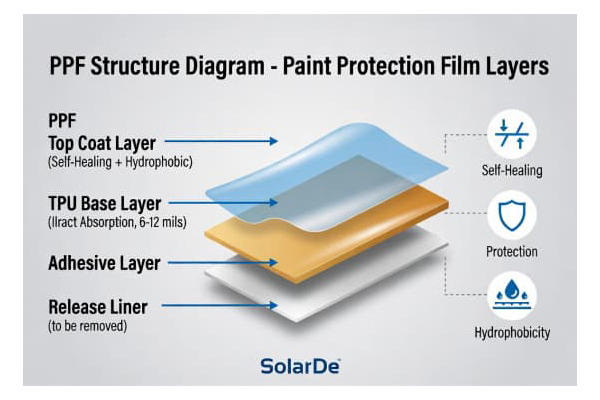

Typical PPF Diagram (3-4 Layers):
- Top Coat Layer — Self-healing + hydrophobic coating (resists chemicals, UV, and dirt)
- TPU Base Layer — Thick, flexible, impact-absorbing core (usually 6-12 mils thick)
- Adhesive Layer — Pressure-sensitive, high-bond adhesive
- Release Liner — Protective backing removed during installation
(Alt text: “Detailed PPF diagram showing multi-layer structure for car paint protection film”)
2. Traditional PPF vs Liquid PPF: Key Differences
Traditional Film PPF is pre-manufactured rolled film applied by professional installers. Liquid PPF (also called Spray PPF or Gloss Liquid PPF) is a nano-ceramic liquid coating that cures into a protective film.
3. Comparison Table: Traditional PPF vs SolarDe Gloss Liquid PPF
| Feature | Traditional PPF Film | SolarDe Gloss Liquid PPF | Winner |
| Thickness | 6-12 mils | 7.5 mils (buildable) | Traditional |
| Self-Healing | Excellent (heat-activated) | Superior (faster room-temp healing) | Liquid PPF |
| Installation Method | Sheet application | Spray / Brush / Wipe | Liquid PPF |
| Gloss & Clarity | High | Mirror-like deep gloss | Liquid PPF |
| Coverage on Complex Areas | Good (needs skill) | Excellent (seamless on curves) | Liquid PPF |
| Repairability | Patch or replace section | Easy spot repair | Liquid PPF |
| Durability (Years) | 5-10 years | 7+ years | Tie |
| Cost (Full Car) | Higher | More affordable | Liquid PPF |
| Hydrophobic Effect | Good | Outstanding | Liquid PPF |
4. Advantages of SolarDe Gloss Liquid PPF
- Easier application for detailers and DIY users
- Seamless coverage on bumpers, mirrors, and intricate areas
- Faster self-healing without needing high heat
- Maintains original paint texture (perfect for matte finishes too)
- Combines benefits of both film and ceramic coating
5. Real-World Applications
- Bumper & Hood: High impact zones — Liquid PPF excels here
- Full Vehicle Wrap: Traditional film still preferred for maximum thickness
- Matte & Colored Cars: Both work, but Liquid PPF preserves factory finish better
- Fleet & Commercial Vehicles: Cost-effective protection
Internal Linking & Product Recommendations
For premium traditional film options, visit our Clear Paint Protection Film collection.
Shop our flagship product: SolarDe Gloss Liquid PPF →
FAQ
Q: What does a PPF diagram show?
A: It illustrates the different protective layers in Paint Protection Film, from the top self-healing coat to the adhesive base.
Q: Is Liquid PPF better than traditional film?
A: It depends on needs. Liquid PPF offers easier application and seamless coverage, while traditional film provides thicker physical protection.
Q: How thick is SolarDe Gloss Liquid PPF?
A: Typically 2-5 mils per coat. Multiple coats can be applied for added thickness.
Q: Can Liquid PPF be applied over existing ceramic coating?
A: Yes, with proper surface preparation. Contact our technical team for best practices.
Q: How long does Liquid PPF last?
A: With proper care, 7+ years. It maintains excellent gloss and hydrophobic properties throughout.
Q: Do you provide PPF structure technical data sheets?
A: Yes. Wholesale partners can request detailed specifications and test reports.
Conclusion
Mastering the PPF diagram and understanding different paint protection film types empowers you to choose the right solution for your needs or customers.
SolarDe combines advanced manufacturing with innovative products like Gloss Liquid PPF to deliver the best of both worlds.
Ready to elevate your protection game?
